Having problem with machine setup?

Please review our instructional videos to guide you with all necessary steps
to properly setup machine to work as new.

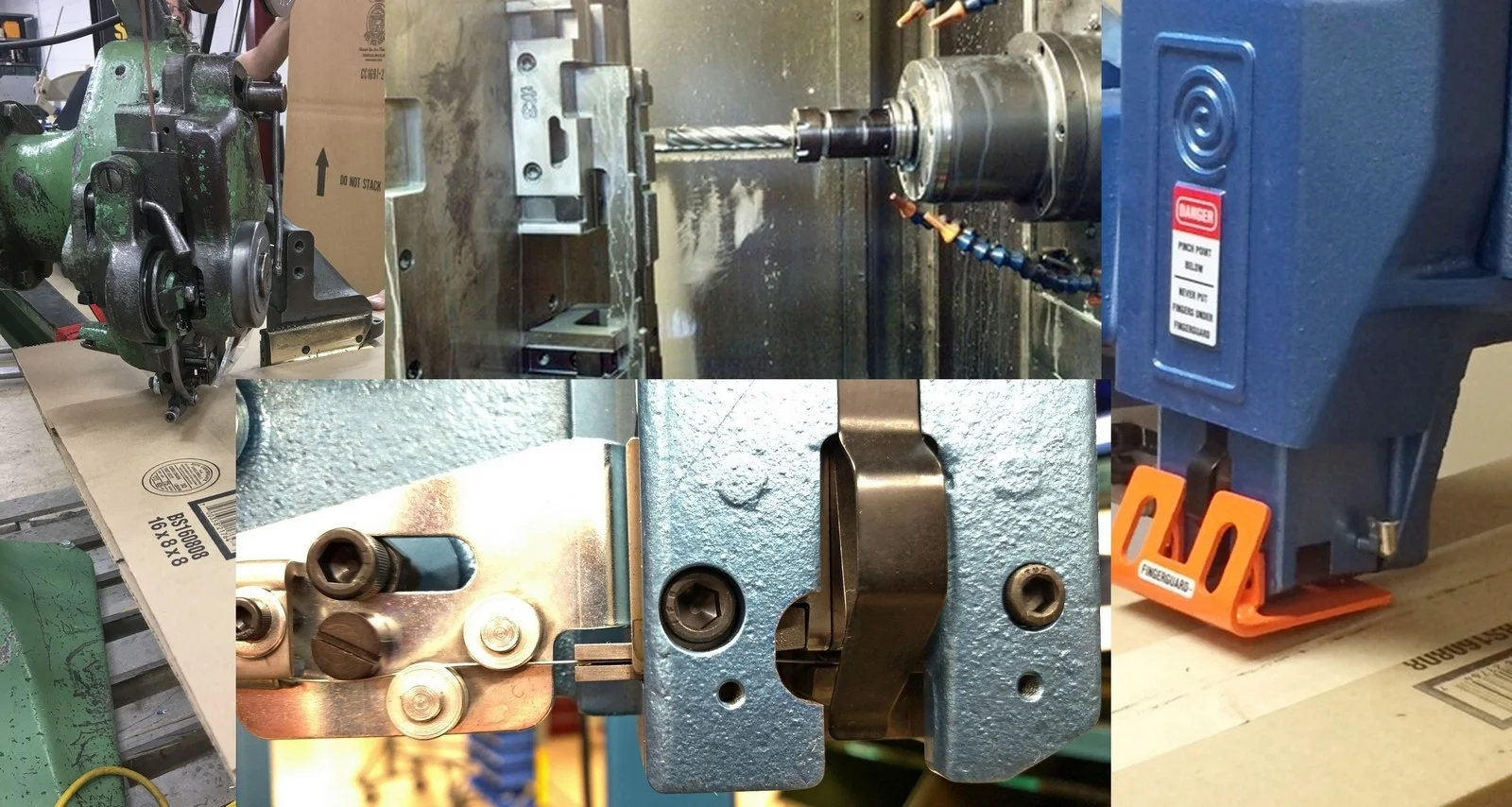

Benefit from the availability of replacement parts and superior technical service & support.

Deluxe Stitcher carton closing and stapler machines are top of the line and are engineered to hold up to decades of industrial production. We have all required replacement parts and our rebuild and repair service is performed by factory trained technicians.

Deluxe Stitcher is equipped to handle any technical service needs that may arise. We stock all replacement parts for our Deluxe Stitcher and most Bostitch machines and have factory Technicians to help trouble shoot and provide phone support at any time.

Call: 847-455-4400  or  Email: technicalsupport@deluxestitcher.com

MACHINE BASIC ADJUSTMENT

Setting Cutter tube

To adjust the wire tube, be sure the machine is in the home or neutral position, then loosen the lock screw, and push the cutter tube against the knife.

Post machine operation

Always have test stock or corrugated under the head before stitching under power. It is safer to cycle the machine over by hand, without power, to be sure all parts are moving correctly

HF machine wire straightening

The wire must be straight traveling through the machine. Accomplished by adjusting the black straightener screw with a screwdriver. More pressure causes the wire to curl down, less pressure causes the wire to curl upwards.

COMING SOON!

Test stitching after initial install or repair

Deluxe Stitcher HF corrugated box machine testing procedure and results. Both single stitch and rapid fire stitching.

COMING SOON!



TROUBLESHOOTING AND SAMPLES

Setting Cutter tube

To adjust the wire tube, be sure the machine is in the home or neutral position, then loosen the lock screw, and push the cutter tube against the knife.

Large 1-1/4"  Crown size

Deluxe Stitcher - ISP - HF16A-1-1/4 crown stitcher used for side seams and tops of corrugated boxes for very strong holding power. WIDE CROWN SIZE.

Standard 7/16" crown, box bottom

Uploaded by Deluxe Stitcher Company on 2014-02-24.
